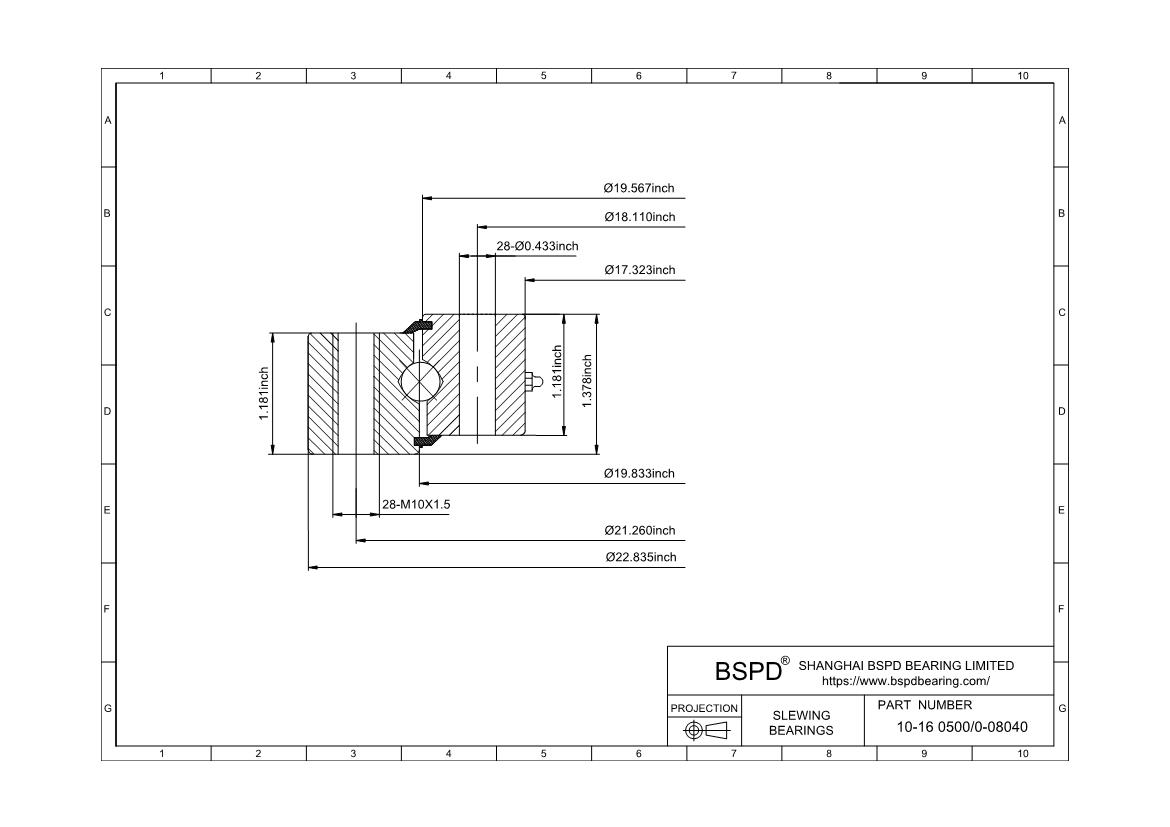

10-16 0500/0-08040 IMO 回转支承轴承
尺寸： 孔（内）径： ； 外直径： ； 宽度(厚度)： ;
发送询盘
产品细节
| Specifications | |
| Part Number | 10-16 0500/0-08040 |
| Gear | Untoothed |
| Geometry | |
| Weight(G) | 53 |
| Outside diameter outer ring(Da) | 22.835 |
| Inside diameter inner ring(di) | 17.323 |
| inside diameter outer ring(Di) | 19.803 |
| Outside diameter inner ring (da) | 19.567 |
| Outside bole-hole circle diameter (La) | |
| intside bole-hole circle diameter (Li) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 21.260 |
| Number Holes in Outer Ring (na) | 28 |
| Pitch circle diameter Inner Ring (Li) | 18.110 |
| Number Holes in Inner Ring (ni) | 28 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | |
| Diametral Pitch (Pd) | |
| Number of Teeth (Z2) | |
| Permissible tooth force (fz norm)(lbs) | |
| Maximum perissible tooth force (fz max)(lbs) | |
| Load Rating | |
| Static Co rad(lbs) | 56877 |
| Static Co Max(lbs) | 116226 |
| Dynamic C rad(lbs) | 31923 |
| Dynamic C Max(lbs) | 27427 |
打印 PDF
回转支承轴承 10-16 0500/0-08040 的类型是什么?IMO 回转支承轴承制造服务。免费获取即时价格、设计审查、库存和交货时间。
最小订单数量：协商价格：协商
- 快速交付 √
- 优质产品 √
- 价格实惠 √
